BRES 002（SH200）
Description:

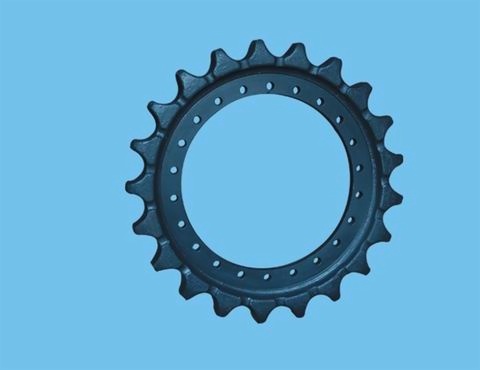

Sprocket for Caterpillar as follow :
|
CATERPILLAR® / MITSUBISHI® EXCAVATORS |
|
Model & Serial Number(SN if applicable) |
Sproket |
|
|
Part No. |
|
E70 |
0962144 |
|
E70B |
0962144 |
|
E110 (3FG1-101, 3GG1-4908 1MJ) |
0961479 |
|
E110 (3FG102-UP, 3GG4909-UP) |
0993220 |
|
E110B (8MF, 9HF, 5GK) |
4I7472 |
|
E120 (1LF) |
0961479 |
|
E120 (1MF) |
0993220 |
|
E120B |
0990219 |
|
E140 |
0968047 |
|
E180 |
0957412 |
|
EL180 |
0957412 |
|
E200B |
0964327 |
|
EL200B |
0964327 |
|
E240, E240, B/C |
0959779 |
|
EL240, EL240, B/C |
0959779 |
|
E300 |
0942576 |
|
E300B |
0994129 |
|
EL300, EL300B |
0994129 |
|
E450 |
0946133 |
|
E650 |
0960310 |
|
205 3HC/4DC |
8E1882 |
|
205 3HC/4DC |
8E1882 |
|
205 5ZF |
8E1882 |
|
211 4EC/5CC |
8E1882 |
|
211 4EC/5CC |
8E1882 |
|
211 6XG |
8E1882 |
|
213 9XB/3ZC |
8E1882 |
|
213 LONG 9XB/3ZC |
8E1882 |
|
213 1EJ |
8E1882 |
|
215 14Z1-431 57Y1-2030 96L |
6A7539 *** |
|
215 14Z1-431 57Y1-2030 96L |
6A7539 *** |
|
215 14Z432-760 |
6A7539 *** |
|
215 14Z432-760 |
6A7539 *** |
|
215 14Z761- 57Y2031- 2XC 9YB |
3T9153 |
|
215C/D 9TF 4HG |
3T9153 |
|
225 (51U1-2831, 76U1-1648) |
3T9153 |
|
225 (51U1-2831, 76U1-1648) |
3T9153 |
|
225 (219/215SA 2ZD1-549 51U2832-UP 76U1649-UP, 4JC 4FC1-735) |
6W2451 *** |
|
225, 219, 215, SA (2ZD1-549 51U2832-UP, 76U1649-UP, 4JC 4FC1-735) |
6W2451 *** |
|
225, 219, 215 (SA 215BSA 6RG 2SJ 3YD 2ZD550-UP 5CF 4FC736-UP 5XG) |
9C2646 *** |
|
225, 219, 215 (SA/215BSA 6RG 2SJ 3YD 2ZD550-UP 5CF 4FC736-UP 5XG) |
9C2646 *** |
|
231, 231D, 229, FB227, 225SA (1NK 5WJ 2LJ 10W, 51U, 76U, 1GE, 1AG) |
9M3818 |
|
235 (32K1-1300 64R1-595) |
9M3818 |
|
235 (32K1-1300 64R1-595) |
9M3818 |
|
235 (5AF, 3WG, 7WC, 1FD, 9PC, 4DG 32K1301-UP, 64R596-UP) |
3V4527 |
|
235, 5AF, 3WG, 7WC, 1FD, 9PC. 4ED, 81X, 83X, 2PG, 4DG, 32K (1301-UP 64R596-UP) |
3V4527 *** |
|
245, 82X1-572, 84X1-597, 94L1-465, 95V1-989 |
8K4054 |
|
245, (6MF, 1SJ, 7ZJ, 4LK, 82X573-UP, 95V990-UP, 84X598-UP 94L466-UP) |
7V0753 |
|
307 |
5I9336 |
|
307B |
1309326 |
|
311B |
4I7472 |
|
312B |
4I7472 |
|
314C |
4I7472 |
|
315, 315B |
1028134 |
|
315L |
1028134 |
|
317, 317N |
1028134 |
|
317BL, 317BLN |
1028134 |
|
318B, 318BL, 318BN |
8E9805 |
|
320BL |
8E9805 |
|
320B, 320BN |
8E9805 |
|
320C |
8E9805 |
|
320L |
8E9805 |
|
320S |
6Y4898 |
|
322, 322N |
8E9805 |
|
322B |
8E9805 |
|
322L, 322LN |
8E9805 |
|
325 |
6Y4898 |
|
325B |
6Y4898 |
|
325BL, 325BLN |
6Y4898 |
|
325N, 325L, 325LN |
6Y4898 |
|
330 |
6Y5685 |
|
330B |
6Y5685 |
|
330BL, 330BLN |
6Y5685 |
|
345B |
1243296 |
|
345BL |
1243296 |
|
350 |
8E6974 |
|
350L |
8E6974 |
|
365BL |
1419655 |
|
375 |
8E4686 |
|
375L |
8E4686 |
|
385B |
2011704 |
|
385BL |
2011704 |
|
