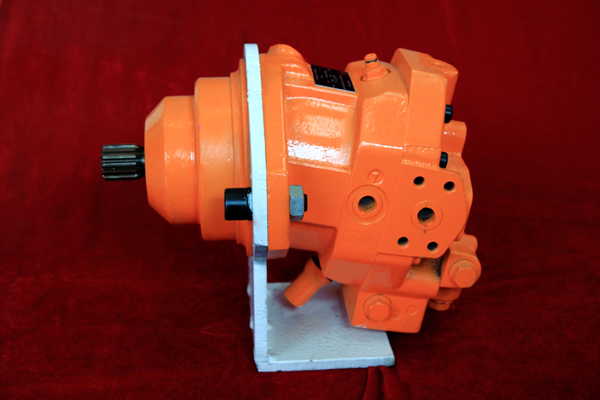

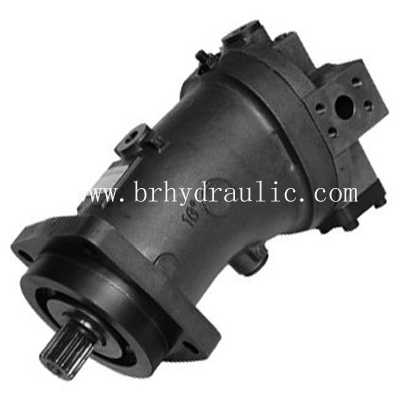

A6V Series Hydraulic Piston motor
Description:
A6V Variable Displacement Motor
Technical Data without considering ηm and ηv
|
Size |
|
28
|
55
|
80
|
107
|
160
|
225
|
250
|
468
|
|
Control Type
|
|
|
|
|
|
|
|
|
|
|
HD Hydraulic control pilot pressure related
|
|
●
|
●
|
●
|
●
|
●
|
●
|
●
|
●
|
|
HS Hydraulic control (two speed) pilot pressure related
|
|
●
|
●
|
●
|
●
|
●
|
●
|
●
|
●
|
|
HA Automatic control, high pressure related
|
|
●
|
●
|
●
|
●
|
●
|
●
|
●
|
●
|
|
DA Hydraulic control, speed related
|
|
●
|
●
|
●
|
●
|
●
|
●
|
●
|
●
|
|
ES Electric control (two speed)
|
|
●
|
●
|
●
|
●
|
●
|
●
|
●
|
●
|
|
EP Electric control (Proportion)
|
|
●
|
●
|
●
|
●
|
●
|
●
|
●
|
●
|
|
MO Torque control
|
|
●
|
●
|
●
|
●
|
●
|
●
|
●
|
●
|
|
MA Manual control
|
|
●
|
●
|
●
|
●
|
●
|
●
|
●
|
●
|
|
Displacement
|
Vgmax
|
ml/r
|
28.1
|
54.8
|
80
|
107
|
160
|
225
|
250
|
468
|
|
Vgmin
|
ml/r
|
8.1
|
15.8
|
23
|
30.8
|
46
|
64.8
|
0
|
135
|
|
Max flow rate
|
Qgmax
|
L/r
|
133
|
206
|
268
|
321
|
424
|
530
|
590
|
889
|
|
Max rotation speed
|
Nmax at Vgmax
|
r/min
|
4750
|
3750
|
3350
|
3000
|
2650
|
2360
|
2360
|
1900
|
|
Nmax< Vgmin
|
r/min
|
6250
|
5000
|
4500
|
4000
|
3500
|
3100
|
3100
|
2500
|
|
Torque constant
|
Mg at Vgmax
|
Nm/MPa
|
4.463
|
8.70
|
112.750
|
16.970
|
25.410
|
35.710
|
39.790
|
74.410
|
|
Mg at Vgmin
|
Nm/MPa
|
1.285
|
2.511
|
3.730
|
4.900
|
7.350
|
10.300
|
11.460
|
21.470
|
|
Max Torque at ∆P=35MPa
|
Mmax at Vgmax
|
Nm
|
156
|
304
|
446
|
594
|
889
|
1250
|
1391
|
2604
|
|
Mmax at Vgmin
|
Nm
|
45
|
88
|
130
|
171
|
257
|
360
|
401
|
751
|
|
Max output power at 35MPa and Qmax
|
kW
|
78
|
120
|
156
|
187
|
247
|
309
|
335
|
519
|
|
Moment 10-3
|
kgm2
|
1.7
|
5.2
|
10.9
|
16.7
|
32.2
|
53.2
|
53.2
|
25
|
|
Weight
|
kg
|
18
|
27
|
39
|
52
|
74
|
103
|
103
|
223
|
|
|
|
